mips logo

Brain Protection
System for Industrial
Safety Helmets

Nearly 60% of head injuries involve angled impacts, which generate rotational forces.

Introducing Mips®, designed to help reduce rotational forces to the head.

CONCUSSIONS AND TRAUMATIC BRAIN INJURIES ARE COMMONLY THE RESULT OF ROTATIONAL FORCES AND STRAIN TO THE BRAIN

Injury statistics demonstrate that impacts are more likely to occur at an angle instead of directly on top of the head. This is typically due to the forward energy of objects, or people, in motion. Over the past few years, science has shown that our brains are particularly sensitive to the rotational forces that result from angled impacts.

head injury image
mips safety system image

MIPS®: A LOW FRICTION LAYER DESIGNED TO HELP REDUCE THE SEVERITY OF HEAD INJURIES

Mips® allows for a 10-15 mm relative movement between the helmet and the head during the critical first 5-10ms of impact. It is not uncommon that the point load at impact is at 2,200 lbs. - Mips® is designed to allow the helmet to move even under this kind of pressure, redirecting the forces that are generated by the impact.

An in-depth look at MIPS®

Founded by two engineers and a neuroscientist, the Mips® brain protection system is meticulously tested prior to being approved for use.

MIPS® Protection Options

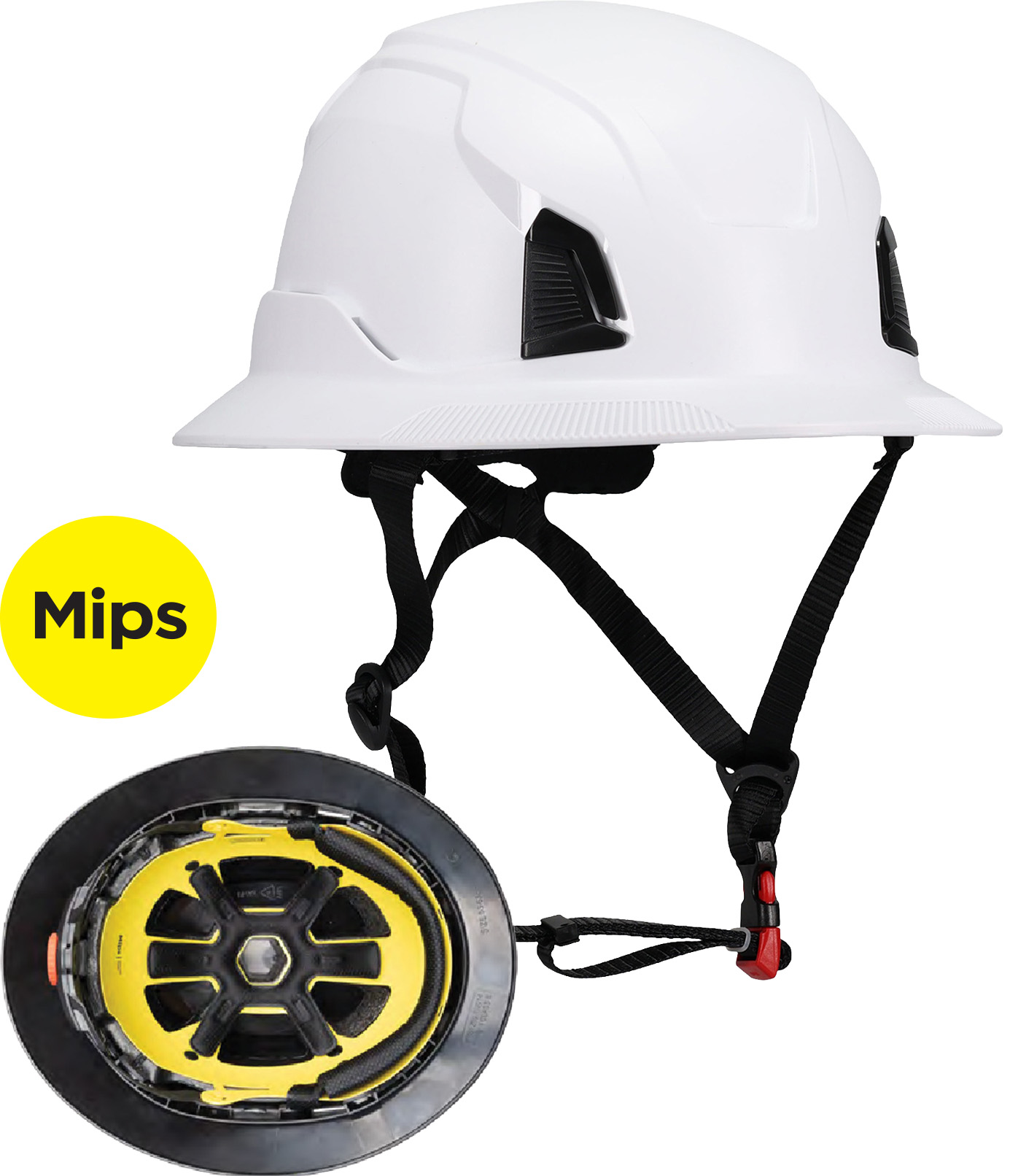

TraverseTM
Full Brim
Safety Helmet

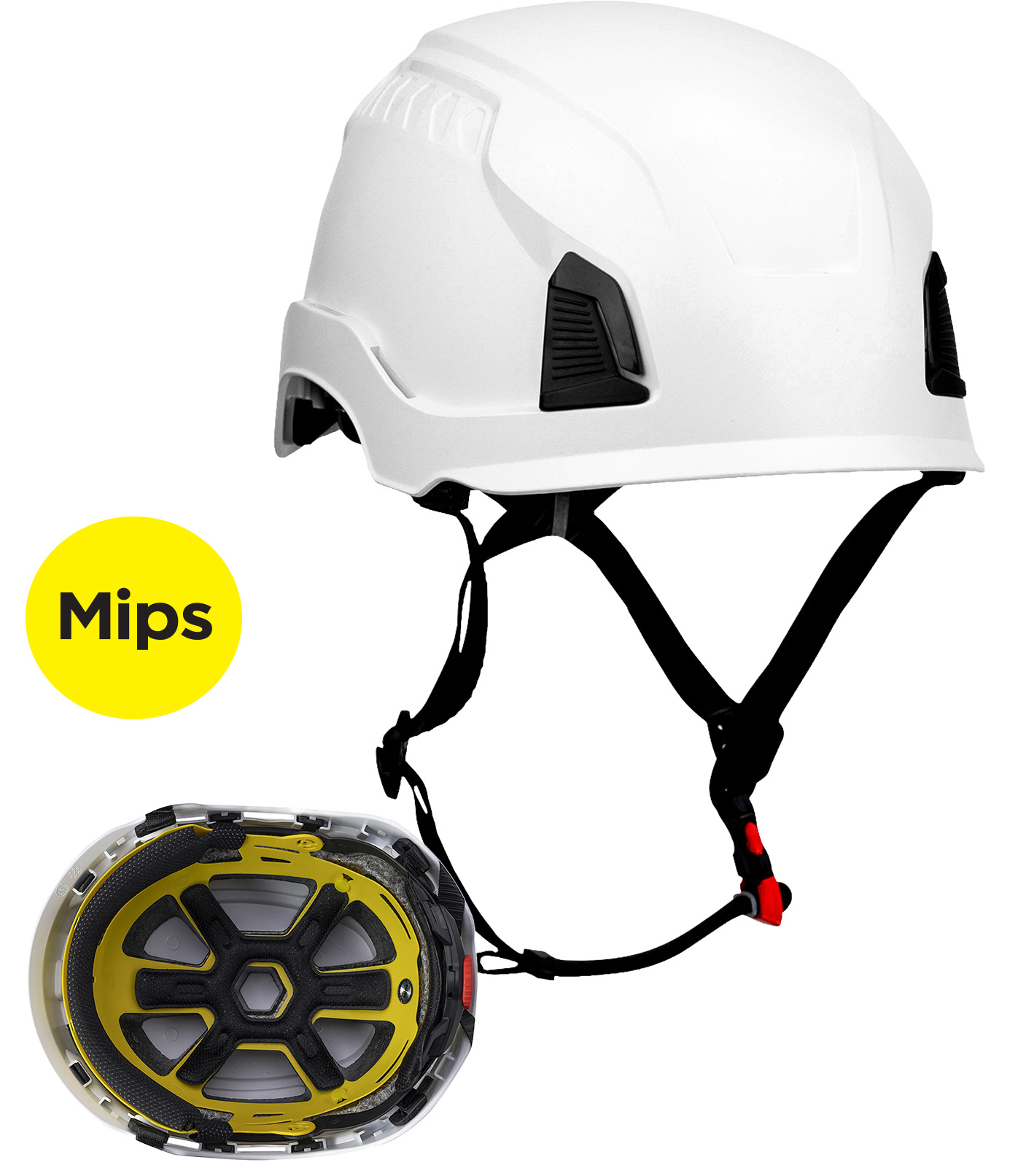

TraverseTM
Climbing-Style
Safety Helmet

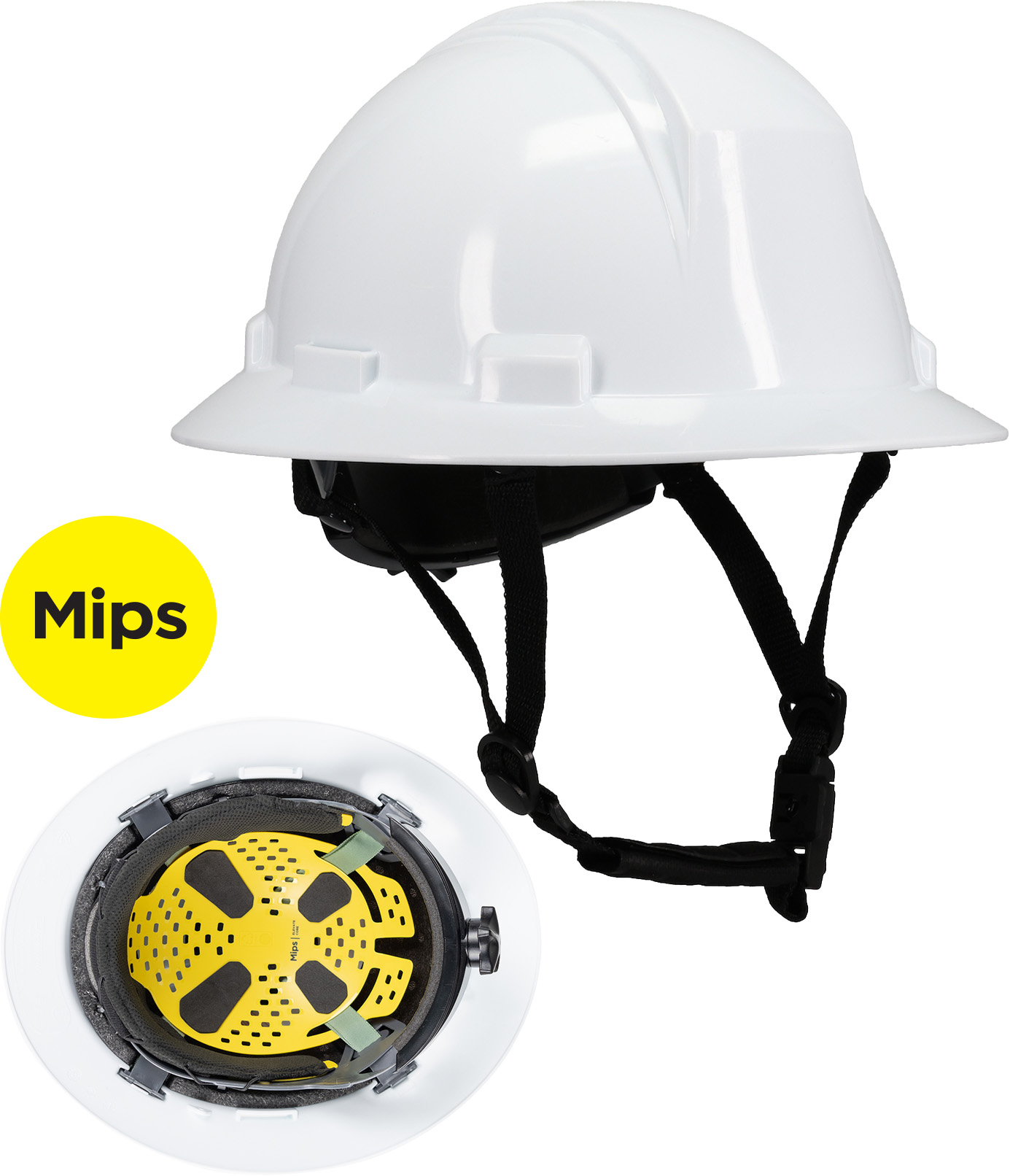

KilimanjaroTM
Full Brim
Hard Hat

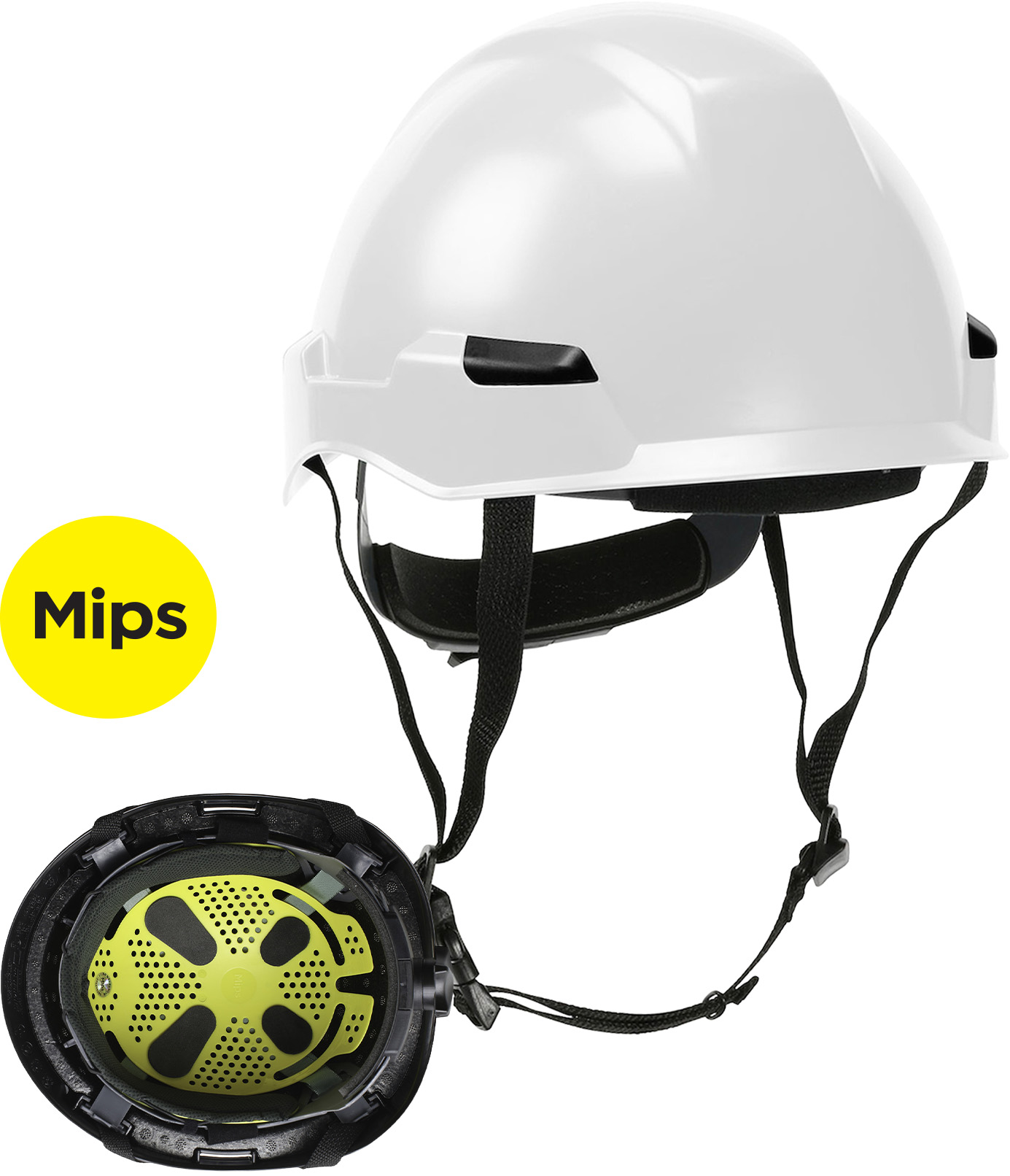

RockyTM
Climbing-Style
Hard Hat

Certification

ANSI Type II & EN 12492 4.2

ANSI Type II & EN 12492 4.2

ANSI Type II

ANSI Type II

Shell

ABS

ABS

HDPE

Polycarbonate/ABS

Liner

EPS

EPS

EPS

EPS

Suspension

Foam Cradle

Foam Cradle

Nylon Suspension

Nylon Suspension

Chin Strap

4-Point

4-Point

4-Point Magnetic

4-Point

Custom Accessories

Universal Accessories

Non-Vented

ANSI Class E

280-HP1491RM-FB

Non-Vented

ANSI Class E

280-HP1491RM

Non-Vented

ANSI Class E

280-HP642RM-CH

Non-Vented

ANSI Class E

280-HP142RM

Vented

ANSI Class C

280-HP1491RVM-FB

Vented

ANSI Class C

280-HP1491RVM

Vented

ANSI Class C

280-HP642RVM-CH
